Update 9-11-25: Improved pulse output rate by 1 Mhz, from 4.5 Mhz to 5.5 Mhz.

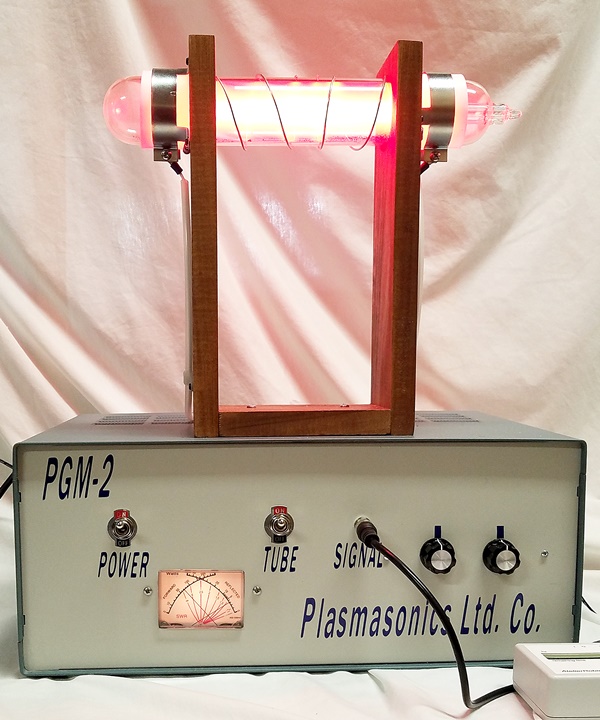

The PGM-2
An Instrument That Creates Oscillating Pulsed Electromagnetic Fields ( OPEF's)
It has the Ability of Form Nanosecond Duration Pulses of up to 5.5 million per second.
It is the only plasma originated, field emission instrument in the world with these frequency and pulse duration capabilities
The
PGM-2 represents the work and development of over 30 years of the research
done by James Bare, D.C, , which has resulted in 5 Patents.
Plasma
Sonics equipment creates output pulse repetition frequencies that are of the
same frequency as the modulation frequency.
This instrument will continuously output oscillating pulsed electromagnetic fields (
OPEF's) with pulse repetition rates as high as 5.5MHz ( 5.5 million pulses per second)
. All of the
historic original #4 machine
frequencies of 1935 can be modulated , including the
majority of the #3 machine frequencies that were used in the 1934
experiments . The frequencies of the # 3 machine
that are above 5.5 MHz, are able to be output as harmonic sidebands. Either as a modulated
signal, or as an actual signal ( 11.78 Mhz for example) . The PGM-2 has
similar power output as that of the 1930's machines. See the linked
Discussion Page for explanation and photos of this ability. Pulses in the MHz range are of sub microsecond duration, that is,
in
the nanosecond ( billionth of a second) range. Nanosecond duration
pulses affect different cellular structures, and create different cellular physiologic effects,
than the typically used
millisecond to microsecond pulses of other instruments.

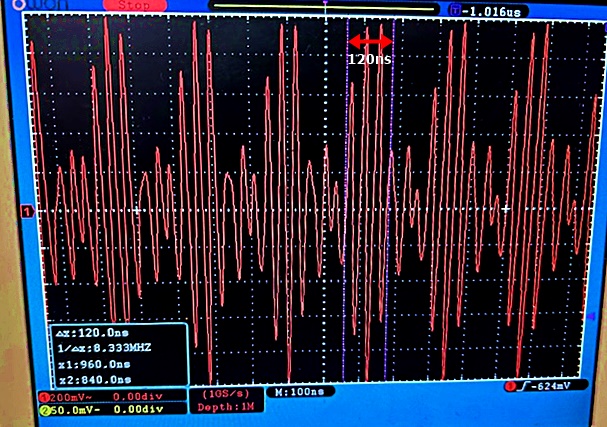

4.5 MHz Continuous Output Pulses- 222ns pulse cycle time 120ns pulse duration at 4.5 MHz

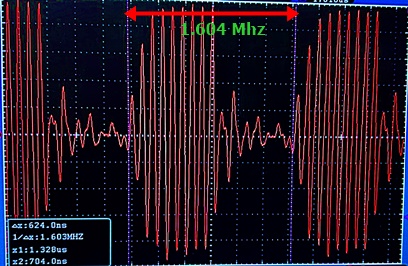

Pulse Repetition Frequency of 1.604 MHz
Read More about the frequency output capabilities of the PGM-2 here : Discussion Page
An AI evaluation of the potential uses of Nanosecond duration pulses:
Besides the production of nanosecond duration pulses, one of the capabilities of the PGM-2 , via the use of harmonics, is to recreate the output frequencies of the Abrams Oscilloclast. The Abrams Oscilloclast was a precursor device, whose principles of operation in part, were used to develop plasma antenna based frequency instruments .
Specifications:
Power
input - 110 to 230 V with automatic internal adaptation. Just change AC
cord to the correct wall plug style depending upon country.
Power output - 60 to 70 watts PEP
Carrier
Frequency of 27.12 Mhz
Frequency
range 40hz to 5,500,000 hz
Rise
and Fall time of pulse envelope < 20 ns
Size
- Approx 17" wide X 11" deep X 7 inches in height.
The
PGM-2
Ships
tuned and ready to use complete with an Atelier Robin F165i Frequency generator
and a 12" X 2" pyrex plasma tube antenna.
Phone: 505-239-1886
